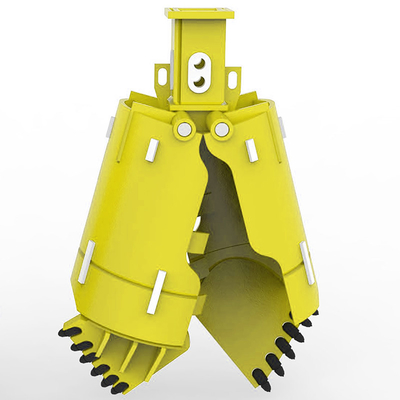

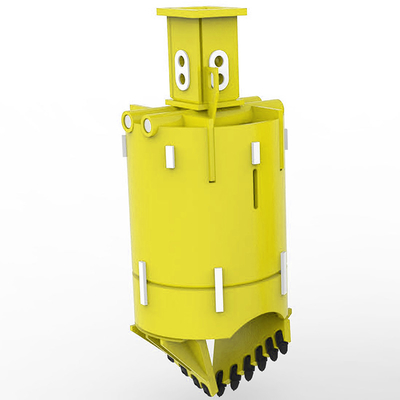

1. OPEN TYPE BUCKET
FEATURE :
1. Large inlet of soil increases the drilling efficiency;
2 .Open type bucket is easy to dump spoil
3. Applicable layers: clay and silt;
4. Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure;
| Drilling Tool Model | |||||||
| Model | Size | Height |
Bucket Thickness |
Stiffening Ring Thickness |
Stiffening Ring Thickness |
No of teeth | Weight |
|
Open Type Drilling Bucket |
φ600 | 1000 | 16 | 20 | 200 | 6 | 683 |
| φ700 | 1000 | 16 | 20 | 200 | 7 | 811 | |
| φ800 | 1200 | 16 | 20 | 200 | 9 | 1045 | |
| φ900 | 1200 | 16 | 20 | 200 | 10 | 1170 | |
| φ1000 | 1200 | 16 | 20 | 200 | 11 | 1348 | |
| φ1100 | 1200 | 16 | 20 | 200 | 12 | 1450 | |
| φ1200 | 1200 | 16 | 20 | 200 | 13 | 1645 | |
| Kelly Box | Sany--150 | Bauer--200 | |||||
| Bottom Type |
Clay Series (Equipped with teeth of FZ80 or V20) |
Rock Series (Equipped with rock drilling bits) |
|||||

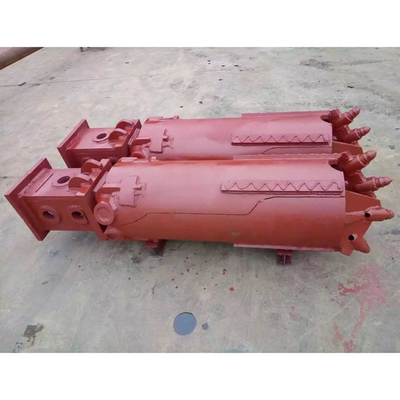

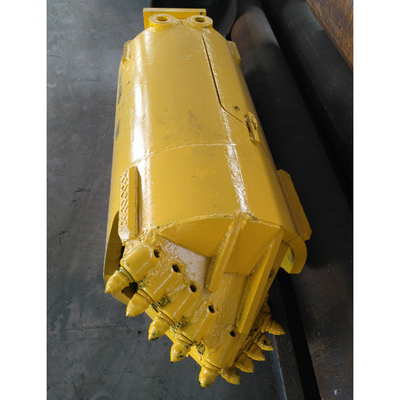

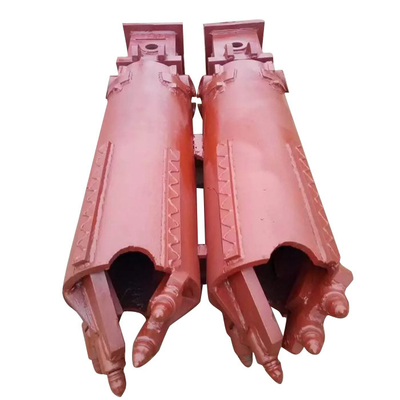

EXHIBITION :
