Name: 20m Friction Kelly Bar Foudation Construction Piling Tool
Brand: Beijing Jietaihongli Technology Co., Ltd.
SKU: 4X 13m
Price: 25,007.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Usage: Foundation Drilling Tools

Warranty: 1 Year

Product Name: Foundation Drilling Tools

Type: Interlocking / Frictional

Drilling Depth: 20-120m

Material: Q345B / 35CrMo With Special Heat Treatment

Highlight:

20m friction kelly bar

foudation construction piling friction kelly bar

20m kelly bar piling

Basic Infomation

Place of Origin: China

Brand Name: JTHL

Certification: ISO

Model Number: 4X 13m

Payment & Shipping Terms

Packaging Details: Packaged With Steel Pallet and Aluminium Film

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 sets/ month

Gallery

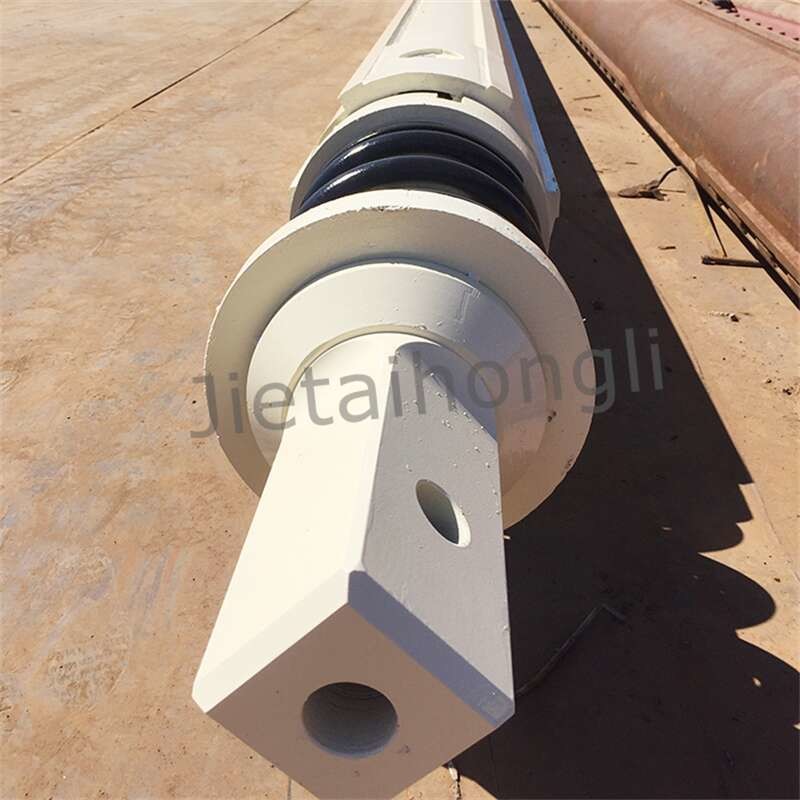

20m Friction Kelly Bar Foudation Construction Piling Tool

Product Description

Foudation Construction Piling Tool Friction Kelly Bar

kelly bar
A hollow bar attached to the top of the drill column in rotary drilling rig.
Usuall there are interlocking kelly type,frictional kelly type,full-interlocking kelly type and combined interlocking type.
Round and square type both can be tailored according to clients request.

Specification

OD(MM)	Model	Section	Tube length	Drilling depth	Torque
¢299/305	Friction	3/4/5	9—14	24—65	110—120
¢340/343	Friction	3/4/5	9—14	24—65	110—120
¢355	Friction	3/4/5	9—14	24—65	110—120
¢368	Friction	3/4/5	9—14	24—65	150—180
¢377	Friction	3/4/5	9—14	24—65	150—180
¢394	Friction	3/4/5	9—15	24—70	180—200
¢406	Friction	3/4/5	9—15	24—70	180—200
¢419/426	Friction	3/4/5	9—15	24—70	220—230
¢440/445	Friction	3/4/5/6	9—18	24—85	220—260
¢470	Friction	3/4/5/6	9—18	24—102	220—260
¢482	Friction	3/4/5/6	9—18	24—102	220—260
¢508/510	Friction	3/4/5/6	9—18	24—102	260—360
¢530	Friction	3/4/5/6	9—20	32—114	320—400
¢558/560	Friction	3/4/5/6	9—24	32—118	360—420
¢575/580	Friction	3/4/5/6	9—24	32—118	360—420
¢630	Friction	3/4/5/6	9—26	32—150	400—500
