Home /Products/Kelly Bar Tool/Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t

1
MOQ
$1500
Price
Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Bauer Type Swivel Joint
Material: Forged Alloy Steel/35 CrMo With Special Heat Treatment
Type: 25T 30T
Inner Bearing: SKF，FAG
Application: Bauer Soilmec IMT MAIT Casagrande Liebherr
Advantage: High Quality And Factory Prices
Highlight:

swivel pivot drilling kelly bar tool

,

25t kelly bar tool

,

30t kelly bar drilling
Basic Infomation
Place of Origin: China
Brand Name: JTHL
Certification: ISO9001
Model Number: 30T
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 2-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 pcs /month
Product Description

 Beijing Jietaihongli Technology Co.,Ltd

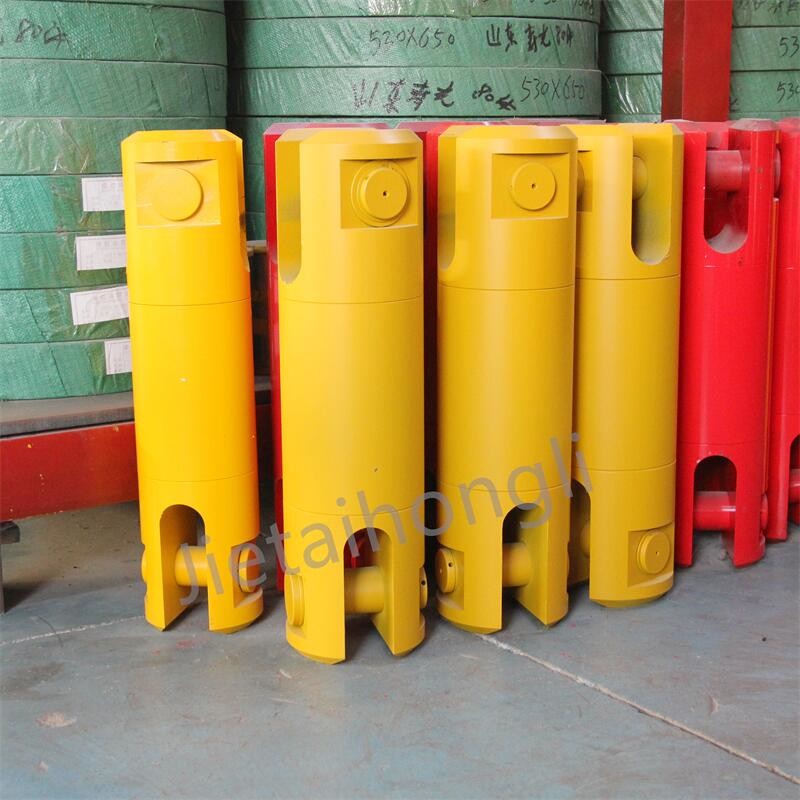

Swivel Joint

1. Swivel is made of metal junction structure, the upper and lower joint part, intermediates and other parts are completely made of high quality forged alloy steel. Going through strict heat treatment after roughing process, then adopts refined
processing, which make the swivel with perfect comprehensive mechanical property, strong wear-resistant and long life.
2. The inner bearing parts adopt imported bearings, SKF, FAG, excellent performance and long life.
3. The sealing elements are completely made of imported seal, NOK, which make it integrates anticorrosion, not easy aging and good sealing property,make sure the oil in the inner cavity is not easy to leak, and the peripheral mud sundries cannot enter the inner cavity of bearing easily, so as to ensure the normal operation of the bearing .

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 0


                   Standard Dimension



Model


D1


D2


D3


A


B


L1



Bearing No.



Pull Power
JT20 ¢120 ¢40 ¢40 43 43 460 3 15-25t
JT25 ¢150 ¢50 ¢50 57 57 610 4   20-30t
JT30 ¢170 ¢55 ¢55 57 57 640 4 25-35t
JT40 ¢200 ¢60¢80 ¢60¢80 67 67 780 5 35-45t
JT50 ¢220 ¢80 ¢80 73 83 930 6 45-55t


Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 1





Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 2Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 3Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 4Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 5



Foreign customers and exhibitions

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 6Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 7

packaging and shipping

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 8Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 9

construction site

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 10





Welcome Contact Us

Drilling Kelly Bar Tool Swivel Pivot Swivel Joint 25t 30t 11

Due to space limitations, not all product details are displayed. For details, please consult Cathy Lee, WhatsApp+8613311085686

Any need feel free connect me please https://api.whatsapp.com/send?phone=8613311085686
After clicking on the link on the phone you can use Whatsapp to contact me directly.We can discuss more details in there .
