Home /Products/Drilling Kelly Bar/CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar

1 set
MOQ
USD9000-USD20000
Price
CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar
Features Gallery Product Description Request A Quote
Features
Specifications
Applicathion: For Piling Rigs For Drilling In Dense Sand, Gravel And Rock
Kelly Sections: Kelly Bar 3-4 Sections
Type: Or Customerized, Bucket Teeth, Interlocking Or Friction Kelly Bar, Kelly Bar, Bucket Bits For Drilling
Suitable Rigs: Bauer, Mait, IMT, Soilmec, Liebherr,Casagrande And More...
Local Service Location: Malaysia, Philippines
Warranty: 1 Year, Unavailable, 4 Years, 6 Months, Customized
Color: Customized, Yellow Or Customized, Gray, Yellow Kelly Bar, Yellow Or Other
Advantage: High Quality And Factory Prices, Six-key Design And Parts With Imported Material
Condition: 100%new, New, 100% New Kelly Bar
Highlight:

piling rig kelly bar liebherr kelly bar

,

JTHL liebherr kelly bar

,

Hitachi piling rig kelly bar
Basic Infomation
Place of Origin: China
Brand Name: JTHL-kelly bar
Certification: ISO9001:2008
Model Number: Hitachi /300-3-12
Payment & Shipping Terms
Packaging Details: Package Options: Standard Packaging & Shipping: Pallet with plastic film
Delivery Time: 6-9 workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 sets/month
Product Description

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar



1, Performance and characteristics:

FRICTIONAL KELLY BAR:
It is the drill pipe that transmits the axial pressure through the friction force between the layers of rods when the rotary excavator is drilling.The friction rod has the characteristics of simple operation and large drilling depth.It is mainly suitable for soft formation construction. Such as clay,silt,muddy soil,artificial backfill and geological construction with some pebbles, gravel and other foundation bearing capacity lower than 350kPA.
At present, the company's longest one is 120 (300-3-13) equipped with 95 drilling rigs.



2, Specification


No. Diammeter of The First Sections Sections Sections Key Pressure Type Length of per section(m) Drill depth Torque(KN.M)
1 ¢299 3     Interlocking 9-16 24-45 100 -120
2 ¢342 3 4   Interlocking 9-16 24-45 100 -120
3 ¢355 3 4   Interlocking 9-16 24 - 56 100-120
4 ¢368 3 4   Interlocking 9-16 24 - 56 150-180
5 ¢377 3 4   Interlocking 9-16 24 - 56 150-180
6 ¢394 3 4   Interlocking 9-16 24 - 58 180-200
7 ¢406 3 4   Interlocking 9-16 24 - 58 180-200
8 ¢419 3 4   Interlocking 9-16 24 - 58 200-230
9 ¢440 / ¢445 3 4   Interlocking 9-16 24 – 58 220-260
10 ¢470 3 4   Interlocking 9-16 24 – 60 220-260
11 ¢482 3 4   Interlocking 9-16 24 - 60 220-260
12 ¢508 3 4   Interlocking 9-16 24 – 68 260-360
13 ¢530 3 4 5 Interlocking 9-16 32 – 92 320-400
14 ¢540 3 4 5 Interlocking 9-16 32 - 92 320-400
15 ¢580 / ¢575 3 4 5 Interlocking 9-16 32 – 92 360-420
16 ¢630 3 4 5 Interlocking 9-16 32 - 102 400-500

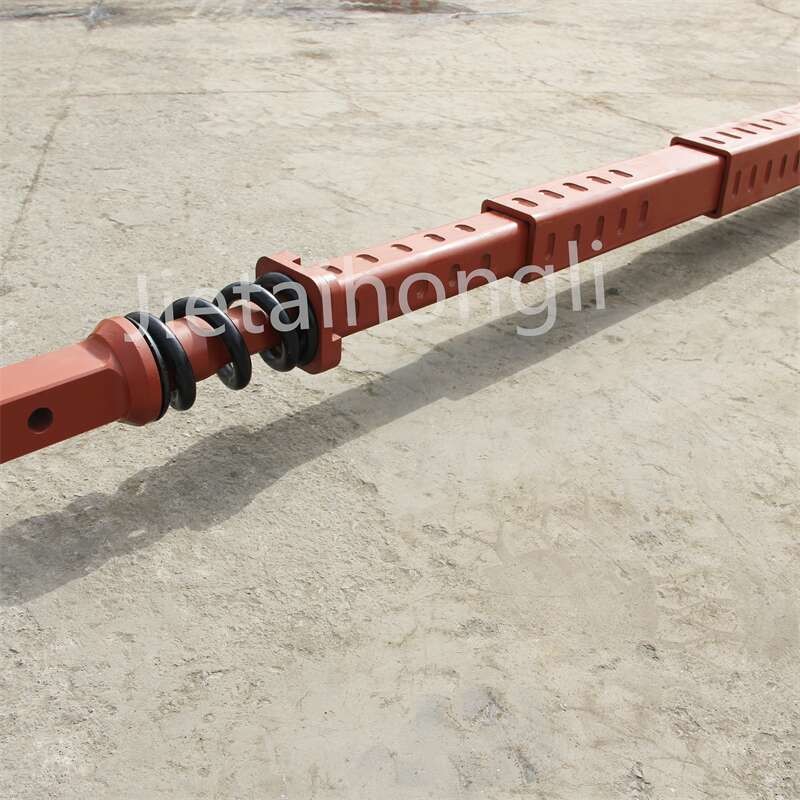

3,Products

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 0CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 1CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 2CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 3CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 4





Accessories for Rotary Drilling Rig Kelly bar



CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 5CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 6CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 7CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 8CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 9CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 10CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 11CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 12

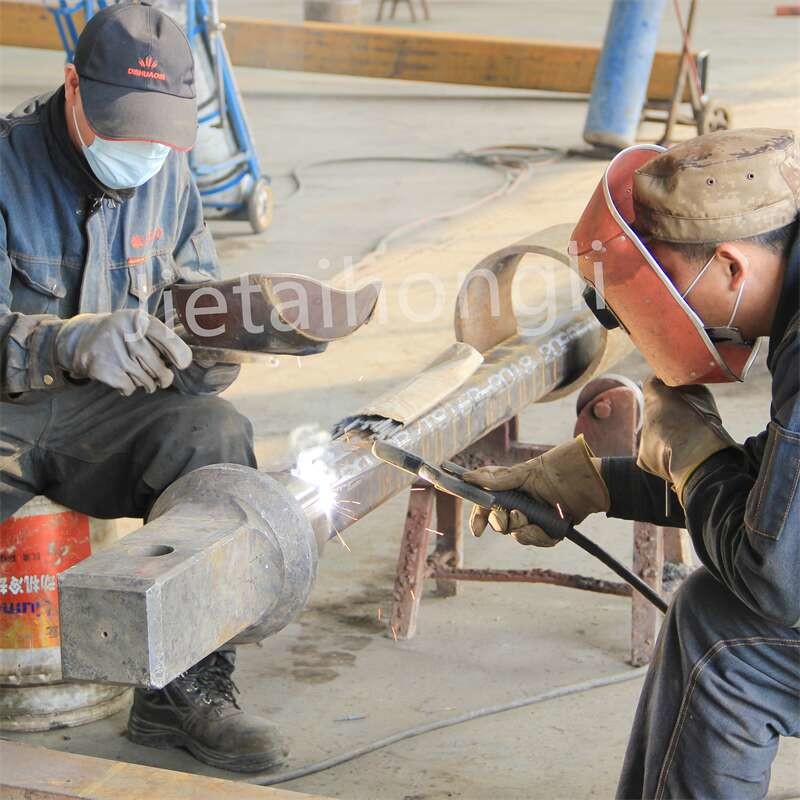

4,Production shop

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 13CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 14CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 15CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 16

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 17

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 18

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 19



CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 20

6,OUR COMPANY

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 21

CERTIFICATION

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 22

EXHIBITHION

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 23

PACKAGING & SHIPPING

CASA Drilling Rig Mait Hitachi Liebherr Kelly Bar Rotary Piling Rig Kelly Bar 24

FAQ



1.Are you Factory?

Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .



2.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar,most are
for Bauer,IMT,MAIT,SOILMEC,SANY,TEG, SUNWARD,XCMG,Etc. For 17 years experience, supply all the world clients with good
satisfaction.

3.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.

4. What warranty do we provide?
Ans.: We provide 1 years warranty time.

5. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down payment.

6.What payment terms do we accept?
 Ans.: We accept TT in advance , LC at sight or Western Union, etc .

7.Does the product accept customization?
Ans.: Yes.
