Customized Concrete Tremie Pipe Q355d/45Cr foundation Tremie Tube

Customized Concrete Tremie Pipe Q355d/45Cr Foundation Tremie Tube

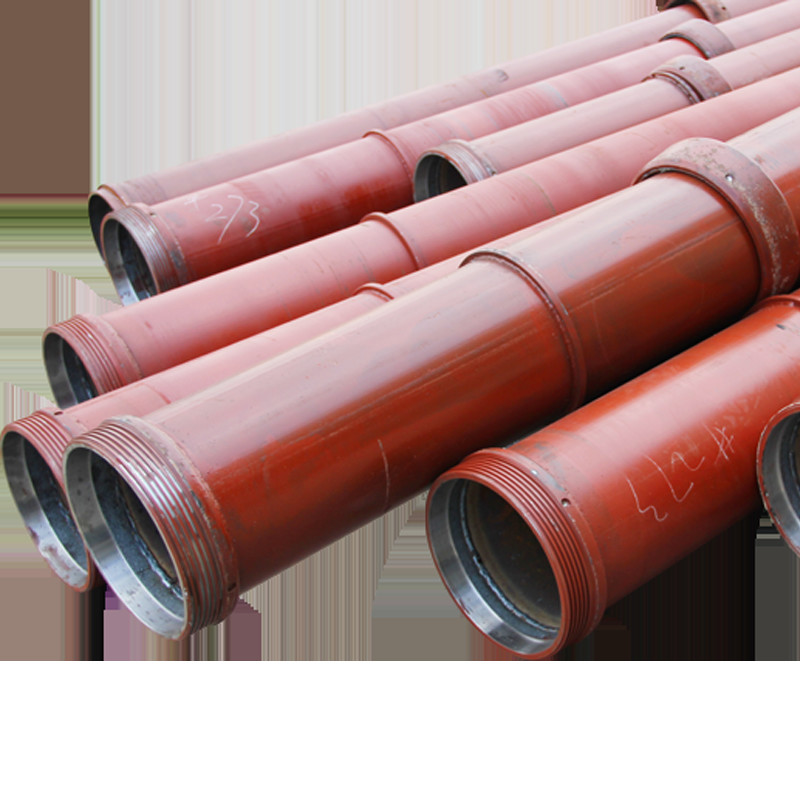

• Tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.Pipes section can be connected by two kinds of coupling systems: threaded joints and wire cable joints.

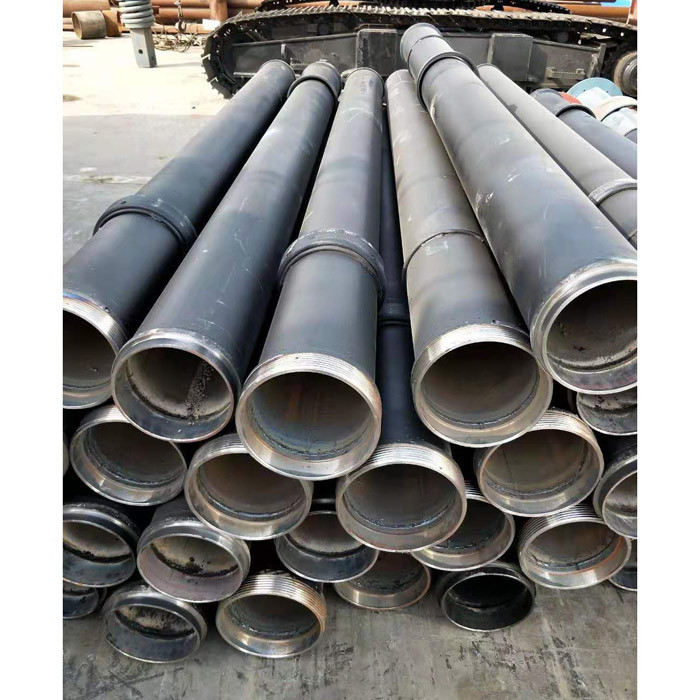

  While threaded tremie pipes are equipped with male/female joints with tread, the wire cable systwm is designed for quick assembly/dismounting of the various pipe sections during the concreting operations.
  Using wire cables joints water and mud penetrations is prevented by O-ring seals applied in between male and demale joints.
  Diameter Range: 219mm, 260mm, 300mm or as required

  Wall thickness: 3mm or as required

• TREMIE PIPE
  FEATURE :

  1. Customized diameter can be customized according to requirements

  2. Material standard is seamless tube,plate CB/T912-Q235

  3. The conventional specifications are 300,260. and 219

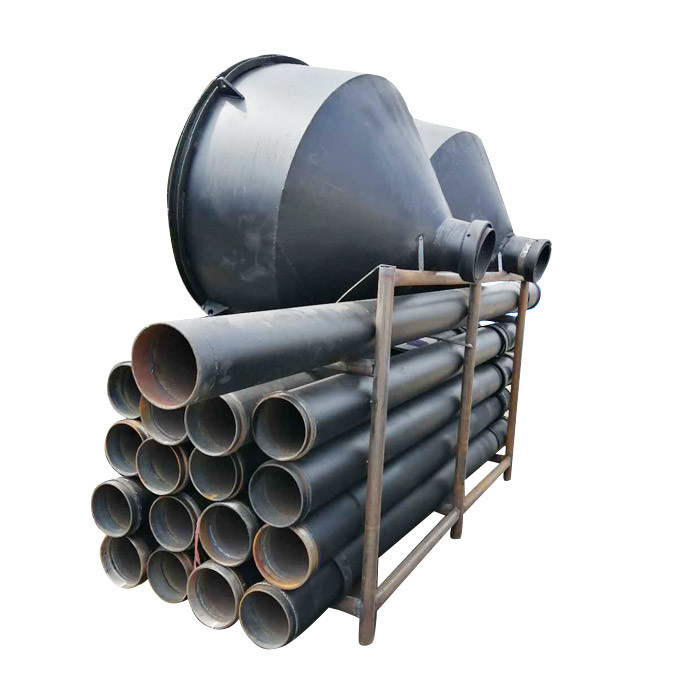

  4.Tremie Pipe with Wire Cables includes:
  Hopper, Lifting Cap, Wire Cables, O-Ring, Rack, Female Joint, Male Joint, Tremie Pipe, Tremie Rack.
  5.Tremie Pipe Threaded includes:
  Hopper, Female Joint, Male Joint, Tremie Pipe.
  TREMIE PIPES WITH WIRE CABLES

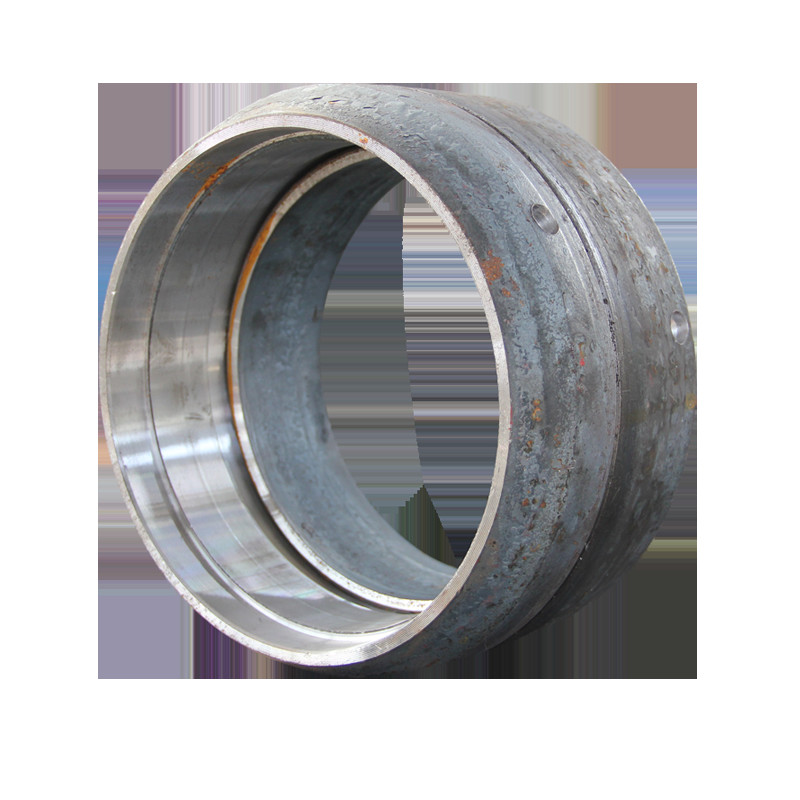

  Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
  274	248	219	3	40
  325	294	260	3	48
  374	338	300	3	65
  *Other dimensions are avaliable on request. Thickness can be customized


  TREADED TREMIE PIPES


  Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
  260	240	219	3	30
  306	286	260	3	32
  345	322	300	3	40
  *Other dimensions are available on request. Thickness can be customized






EXHIBITION :

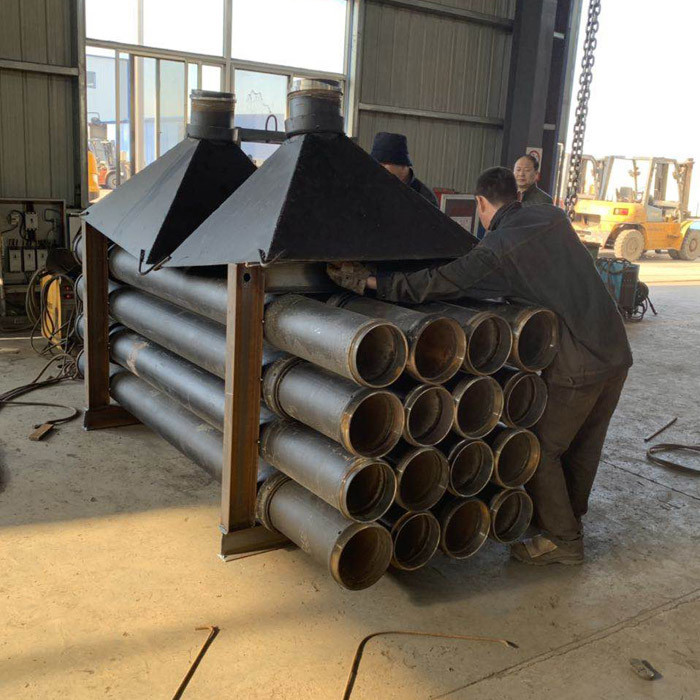

FACTORY SHOW:
