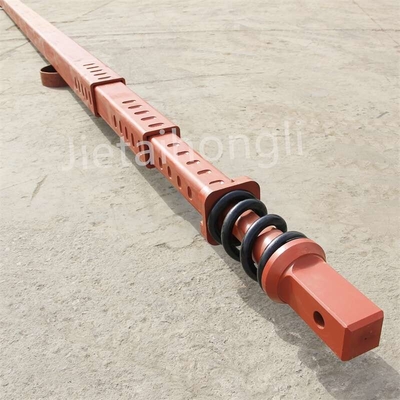

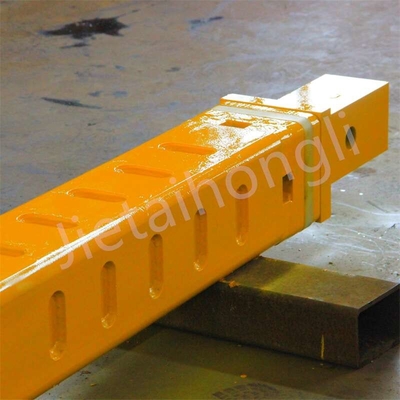

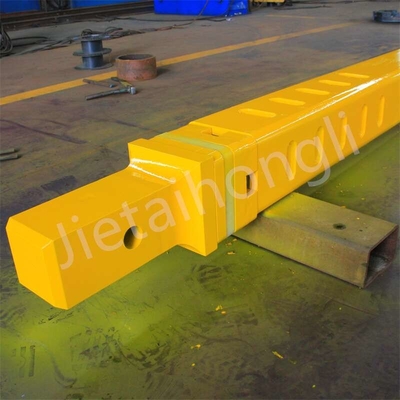

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar

1 set
MOQ
USD9000-USD20000
Price
Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar
Features Gallery Product Description Request A Quote
Features
Specifications
Applicathion: For Piling Rigs For Drilling In Dense Sand, Gravel And Rock
Kelly Sections: Kelly Bar 3-4 Sections
Type: Or Customerized, Bucket Teeth, Interlocking Or Friction Kelly Bar, Kelly Bar, Bucket Bits For Drilling
Suitable Rigs: Bauer, Mait, IMT, Soilmec, Liebherr,Casagrande And More...
Local Service Location: Malaysia
Warranty: 1 Year, Unavailable, 4 Years, 6 Months, Customized
Color: Customized, Yellow Or Customized, Gray, Yellow Kelly Bar, Yellow Or Other
Advantage: High Quality And Factory Prices, Six-key Design And Parts With Imported Material
Condition: 100%new, New, 100% New Kelly Bar
Basic Infomation
Place of Origin: China
Brand Name: JTHL-kelly bar
Certification: ISO9001:2008
Model Number: Hitachi /200-3-12
Payment & Shipping Terms
Packaging Details: Package Options: Standard Packaging & Shipping: Pallet with plastic film
Delivery Time: 6-9 workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 sets/month
Product Description



1,Performance and characteristics:

FRICTIONAL KELLY BAR:
It is the drill pipe that transmits the axial pressure through the friction force between the layers of rods when the rotary excavator is drilling.The friction rod has the characteristics of simple operation and large drilling depth.It is mainly suitable for soft formation construction. Such as clay,silt,muddy soil,artificial backfill and geological construction with some pebbles, gravel and other foundation bearing capacity lower than 350kPA.
At present, the company's longest one is 120 (575*6*21.5) equipped with 95 drilling rigs.



2,Specification


No. Diammeter of The First Sections Sections Sections Key Pressure Type Length of per section(m) Drill depth Torque(KN.M)
1 ¢299 3     Interlocking 9-16 24-45 100 -120
2 ¢342 3 4   Interlocking 9-16 24-45 100 -120
3 ¢355 3 4   Interlocking 9-16 24 - 56 100-120
4 ¢368 3 4   Interlocking 9-16 24 - 56 150-180
5 ¢377 3 4   Interlocking 9-16 24 - 56 150-180
6 ¢394 3 4   Interlocking 9-16 24 - 58 180-200
7 ¢406 3 4   Interlocking 9-16 24 - 58 180-200
8 ¢419 3 4   Interlocking 9-16 24 - 58 200-230
9 ¢440 / ¢445 3 4   Interlocking 9-16 24 – 58 220-260
10 ¢470 3 4   Interlocking 9-16 24 – 60 220-260
11 ¢482 3 4   Interlocking 9-16 24 - 60 220-260
12 ¢508 3 4   Interlocking 9-16 24 – 68 260-360
13 ¢530 3 4 5 Interlocking 9-16 32 – 92 320-400
14 ¢540 3 4 5 Interlocking 9-16 32 - 92 320-400
15 ¢580 / ¢575 3 4 5 Interlocking 9-16 32 – 92 360-420
16 ¢630 3 4 5 Interlocking 9-16 32 - 102 400-500



3,Products

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 0Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 1Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 2Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 3Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 4





Accessories for Rotary Drilling Rig Kelly bar



Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 5Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 6Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 7Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 8Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 9Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 10Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 11Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 12



4,Production shop

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 13Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 14Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 15Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 16

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 17

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 18

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 19



Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 20

6,OUR COMPANY

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 21

CERTIFICATION

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 22

EXHIBITHION

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 23

PACKAGING & SHIPPING

Interlocking Kelly Bar For CASA Drilling Rig Mait Hitachi Rotary piling rig Squarecking kelly bar 24

FAQ



1.Are you Factory?

Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .



2.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar,most are
for Bauer,IMT,MAIT,SOILMEC,SANY,TEG, SUNWARD,XCMG,Etc. For 17 years experience, supply all the world clients with good
satisfaction.

3.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.

4. What warranty do we provide?
Ans.: We provide 1 years warranty time.

5. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down payment.

6.What payment terms do we accept?
 Ans.: We accept TT in advance , LC at sight or Western Union, etc .

7.Does the product accept customization?
Ans.: Yes.
