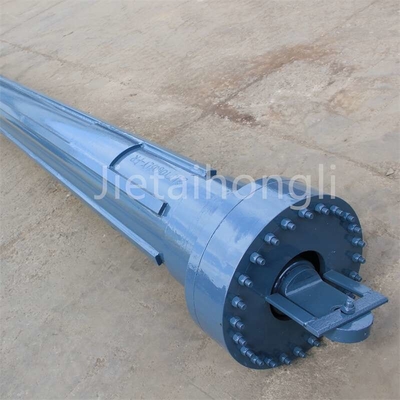

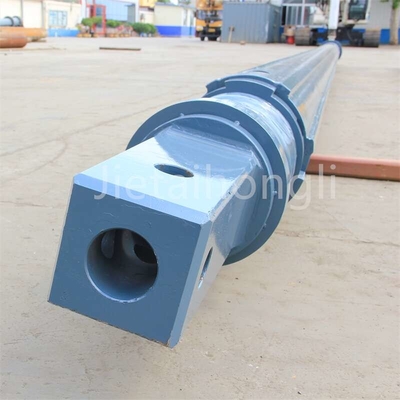

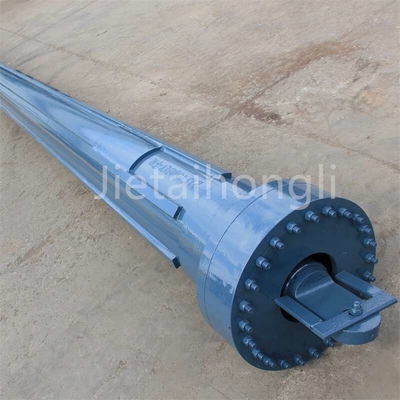

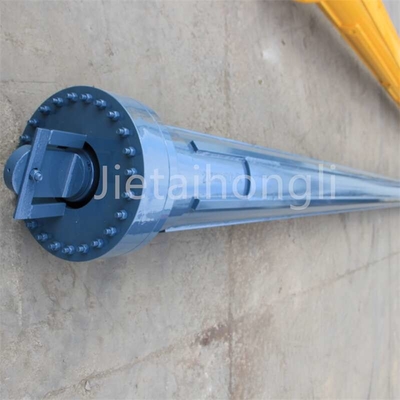

Rotary drilling rig casagrande B125 B170 piling rig parts interlock kellybar made by JTHL
JTHL Interlock Kelly bar adopts the international advanced six-ribs distribution technology. The inner keyboards and outer keyboards are manufactured from overall forging and pressing high-tensile steel . The special heat treatment which make this style Kelly bar with high abrasion resistance, compression resistance and excellent welding properity.
Kelly bar is based on domestic rig configuration and condition demand, combined with the home and abroad advanced manufacture technology, supporting domestic and foreign rotary piling rig.
Specification
| No. | Diammeter of The First | Sections | Sections | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | Interlocking | 9-16 | 24-45 | 100 -120 | ||
| 2 | ¢342 | 3 | 4 | Interlocking | 9-16 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 200-230 | |
| 9 | ¢440 / ¢445 | 3 | 4 | Interlocking | 9-16 | 24 – 58 | 220-260 | |
| 10 | ¢470 | 3 | 4 | Interlocking | 9-16 | 24 – 60 | 220-260 | |
| 11 | ¢482 | 3 | 4 | Interlocking | 9-16 | 24 - 60 | 220-260 | |
| 12 | ¢508 | 3 | 4 | Interlocking | 9-16 | 24 – 68 | 260-360 | |
| 13 | ¢530 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 320-400 |
| 14 | ¢540 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 92 | 320-400 |
| 15 | ¢580 / ¢575 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 360-420 |
| 16 | ¢630 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 102 | 400-500 |
FAQ
1.Are you Factory?
Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .
